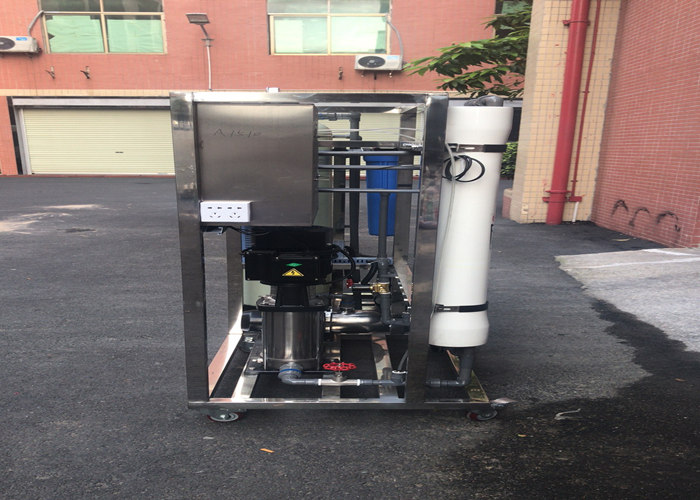

Water Purifier System / High Salty Brackish Water Reverse Osmosis Filter Machine

Brackish Water Treatment Plant Component

Raw water pump ► Quartz sand filter ► Activated carbon filter ► Security filter ► High-pressure pump ► RO system + Alkaline Filter + Coconut shell carbon filter

1. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^

2. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;

3. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;

4. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

5. Alkaline Filter: use stainless steel as housing, fill alkaline ball inside, can be done for PH 7-10 alkaline drinking water.

6. Coconut shell carbon filter: use stainless steel as housing, fill coconut shell carbon inside, remove color, odor, residual chlorine and organics substances;

7. PP Filter Cartridge: Intercept >1µm accuracy large particles, bacteria, viruses. (optional)

8. Folding filter Cartridge: Intercept >0.22µm accuracy large particles, bacteria, viruses. (optional)

There are several kinds of consumables you need to replace regularly.
a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month

Application:

1. Cosmetic industry, removal of the ions in the water, organic creature.
2. Food and beverage industrial water, drinking pure water, soft drink, beer, liquor, health care products, such as water purification and preparation of water
3. Textile, chemical industry process water/chemical preparation water circulating water, chemical products, such as purification and manufacturing
4. Can be used for bottled water, mineral water, etc filling water of making work
5. Electronic, biological and medical engineering( medical pure water).

Brackish Water Treatment Plant Details

Guangzhou Kai Yuan Water Treatment Equipment Co., Ltd Is Executive Director Unit Of China Water Enterprises Confederation Desalination Branch And Member Of Miac(China Membrane Industry Association).

We Are 25 Years+ Full Experience In Pure Water Treatment Equipment Manufacturer. We Has Been Engaged In Water Treatment Product And Technology Development And Utilization.

We Are Specialized In Manufacturing Reverse Osmosis(Ro) System, Seawater Desalination System, Ultrapure Water System, Pure Water System For Gmp Medical And Pharmaceutical, Nanofiltration System(Nf), Ultrafiltration System(Uf), Micron Filtration System(Mf), Ion Exchange System, Edi Systems Etc.

We Can Provide Water Treatment Project Design, Manufacture, Installation And All-Round Service.

Our Company Invests Large Fund And Brains To Research Products To Fit The Demand Of The Market. High Level Research Group, Advanced Apparatus And Good Scientific Atmosphere Ensure The Stable And Reliable Quality, Most Of Our Products Conform To The Requirements Of ISO9001:2008, CE , SGS, It Is Mainly Sold To Pharmacy Company And Health Care Company And Water Shortage Country In Abroad, Due to strict quality management and good reputation, our products have been sold to southeast Asia, Africa, the Middle East, South America and Europe and other countries and regions.

Welcome Customers From All Over The World To Visit Us.
