Reverse osmosis system is using city water as feed water.
Pre-treatment filters always contain quartz sand filter, activated
carbon filter, water softener and security filter. Main purpose is
to remove sludge, rust, colloid, suspended solids, color, odor,
biochemical organic impurity in raw water. And pre-filters can also
reduce water residual chlorine and pesticide and other harmful
pollutions. If raw water in high hardness, we will need to add
water softener to protect reverse osmosis membrane.
1--Hygienic /Clean / Smooth / Beauty / Food grade.
2--Welding technology : Single-sided welding double-sided
forming,which make inside pipes elbows are same and smoth.
KYRO-6000LPH RO Water Treatment System:
Parameters of 6000LPH RO Water Purifier |
| | | |
| | | Provide needed pressure for every pre-treatment filter |
| | | Remove the water contains sediment, manganese, rust, colloid material, and other particles in the above 20UM of substances hazardous to
health. |
| | | Remove the pigment in the water, smell,organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants. |
Water Softener (one stand-by) | | | Water softener can remove Calcium ion(Ca2+) and magnesium ion(Mg2+)
to reach the aim of removing hardness from water. |
| | | Remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree. |
| | | Provide needed pressure for RO system |
| | | Can remove particles, colloids, organic impurities, heavy metal
ions, bacteria, virus, heat source etc. harmful substances and 97%
dissolved salts. |
UV Sterilizer /Ozone generator | | | Kill bacterial in water. UV for direct drinking water. Ozone
generator for bottle water |
Option Item | Anti-dosing system / CIP system / Chlorination system |

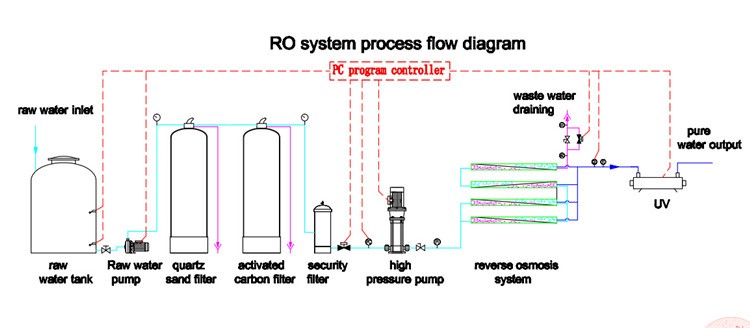

Process: raw water tank + raw water pump + quartz sand filter + activated
carbon filter + water softener/chemical dosing system(optional) +
security filter + high pressure pump + ro system + pure water tank
+ UV sterilizer(ozone generator) + precision filter + water supply
point
Some parts function
1.Raw water pump: provide needed pressure for every pre-treatment
filter;
2.Quartz sand filter: use fiber glass as housing, fill quartz sand,
it can filter big particles impurities, suspended substances,
colloids etc. Important to remove iron and sediments you mentioned;
3.Activated carbon filter: use fiber glass as housing, fill
activated carbon, remove color, odor, residual chlorine and
organics substances;
4.Security filter: prevent large particles, bacteria, viruses into
RO membrane, accuracy is 5µm;
5.High pressure pump: provide needed working pressure for RO
system, ensure production capacity of pure water;
6.RO system: can remove particles, colloids, organic impurities,
heavy metal ions, bacteria, virus, heat source etc. harmful
substances and 99% dissolved salts.
6. Pictures Show
Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours.
Tel/whatsapp/wechat: +86-13711203110
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
