50TPH Automatic Desalination Of Brackish Water By Reverse Osmosis
Water Purification Unit
RO (Reverse Osmosis) Water Purification Treatment : The capacity
ranges: from 1500GPD (0.25t/h) to 3,000,000 GPD (500t/h). Reverse
osmosis (RO) technology known as hyper filtration, is widely used
in Cosmetic, Pharmaceutical, chemical industries, food, drinking
water. RO equipment is the most advance and energy saving in water
treatment industry.
Reverse osmosis pure water equipment parameters
1. Pure water output: 500L/hour; (actual water output is higher
than standard design value)
2. Inlet water source: municipal tap water or ground water etc...
3. Outlet water quality: conductivity is less than 3us / cm(TDS is
<2PPM), desanilation rate is 97%
4. Outlet quality meets the standards of the urban construction
industry of the People's Republic
5. Rated power: 2000w
6. Rated voltage: 220v or 380v
7. Water pressure: 0.1mpa or more
8. Packaging type: wooden frame packaging
We don't produce water, we only treat water
Water treatment equipment can choose different treatment processes
and equipment according to the user's raw water quality, capacity
and the difference industry area. The process is different and the
cost is quite difference. We can provide you economy and suitable
peocess according to your water quality and capacity you need.
Maximize your cost savings^^
FEATURES
| 1. High salt rejection: 98% and recovery rate . |
| 2. No need to flush frequently and importantly, no pollution. |
| 3. The product water can be drunk directly, no mineralization is
required. |
| 4. Rust and corrosion resistant with stainless steel or carbon steel coated frame |
| 5. Flushing the membrane surface by low pressure fresh water when
system stops to reduce pollution to membrane thus prolong
membrane’s lifetime. |
| 6. Stable performance, safe and reliable, up to date design |
| 7. Small in size,easy installation and operation, easy maintenance |
MAIN COMPONENTS
| DOW membrane BW30-4040,BW30-400 |
| FRP pressure vessel |
| GRUNDFOS SS centrifugal high pressure pump |
| CIP system(including cleaning tank) |
| PLC automatic control |
| SS/Carbon steel coated frame |
OPTIONAL COMPONENTS
| Multi-media filter |
| Activated carbon filter |
APPLICATION
| * Daily drinking water for buildings, hotel rooms, factories,
schools, etc. |
| * For mobile working organizations such as ocean voyages, drilling
units, field exploration, tec. |
| * Desalination of water used in production techniques |
RO plant Flow chat
Raw water→ 1. Booster pump→ 2. Sand(multi-medium) filter→3. Active
carbon filter→4. Softener (optional)→ 5. Security(micron) filter→6.
High pressure pump→7. Reverse osmosis system→ 8. UV sterilizer
(ozone generator) →Pure water storage tank
Function of each part of water treatment plant
1.Booster pump– provide the pressure to quartz sand filter/active
carbon filter
2.Multi-medium filter– get rid of turbidity, suspended matter,
organic matter, colloid, ect.
3.Active Carbon filter–Remove the color, free chloride, organic
matter, harmful matter, ect.
4.Softener–exchange "ions" of calcium and magnesium with the most
common and easiest method.
5.Security filter–prevent large particles, bacteria, viruses into
RO membrane, accuracy is 5um
6.High pressure pump– Provide the high pressure to RO membrane
7.RO system– main part of the plant. The RO membrane's desalting
rate can reach 99%, removing over 99% ions
8.UV sterilizer or ozone generator- kill bacteria

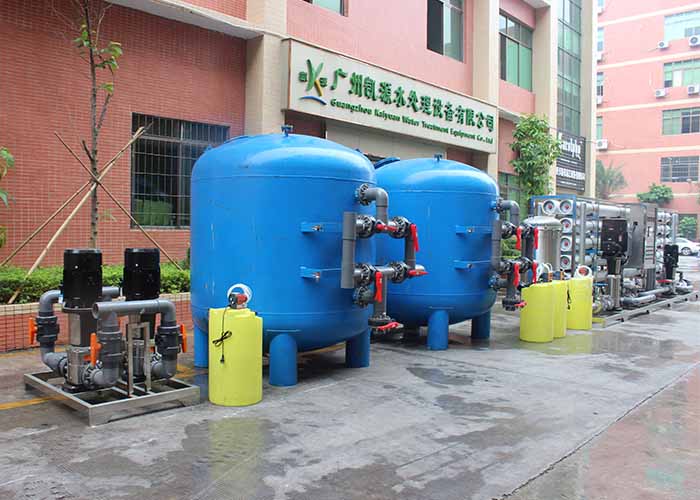

RO system Detail picture
