Reverse Osmosis Water Filtration Treatment Machine Water Purification Plant For Dialysis

Ask Lasest Price
Brand Name :	Kaiyuan
Model Number :	KYRO-5000LPH
Certification :	ISO9001, CE, SGS
Price :	negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	>300sets/month
Delivery Time :	1-7working days(depand on raw materials stocking)

Add to Cart

Product Details
Company Profile

Reverse Osmosis Water Filtration Treatment Machine Water Purification Plant For Dialysis

Reverse Osmosis Water Filtration Treatment Machine Water Purification Plant For Dialysis

RO Water Treatment System Description

The system adopts fully automatic control (also can be controlled manually), and the system can set automatic backwashing and regeneration program when the system is running;

First-stage reverse osmosis and two-stage reverse osmosis are provided with a return pipe, and the reverse osmosis device is provided with a chemical cleaning device and disinfection device.
The reverse osmosis membrane adopts the US imported reverse osmosis membrane to ensure the long-term stable operation of the reverse osmosis equipment;

The reverse osmosis pipeline is made of high quality materials such as stainless steel and UPVC;

An on-line conductivity detector is installed in both the first-stage reverse osmosis and the second-stage reverse osmosis apparatus;

The reverse osmosis system is provided with low voltage protection and high voltage protection switch;

The reverse osmosis water recovery rate is adjustable, the first-stage reverse osmosis recovery rate is 60-70%, and the second-stage reverse osmosis recovery rate is 70-80%;

The circulating conveying pipe is equipped with an ultraviolet sterilizer and a microporous filter to ensure that the pure water meets the sanitary requirements.

Specificationfor 5000L/H RO system
Item	Material/Model	Brand	Function
Raw water pump	SS304	Domestic	Provide pressure for raw water
Quartz sand filter	SUS-304	Domestic	Remove large particule
Activated carbon filter	SUS-304	Domestic	Removesmell,color,bacterial and organic matter
Security filter	PVC 1μm/5μm	Domestic	Block impurities greater than 5micron(1micron)
High pressure pump	SS304	CNP	Provide pressure for water into RO membrane
RO membrane	BW30-400IG	USA DOW	Remove heavy mental ion,bacterial,virus
UV sterilizer(Optional)	40W*2	Domestic	Kill 99% bacterial (For drinking directly)
Ozone Generator(Optional)	15g/l	Domestic	Kill 99%bacterial and keep 2hours.(For making bottled water)

RO Water Treatment System Process

Raw water - raw water pressure pump - quartz sand filter - activated carbon filter - precision filter - one stage high pressure pump - first stage reverse osmosis - second stage high pressure pump - second stage reverse osmosis - UV sterilizer -Purification water tank - water point

RO Water Treatment System Performance

⇒ Main part (membrane) of reverse osmosis system is imported from USA.
⇒ Auto stop when no water and full water.
⇒ Auto controller, RO membrane auto flush to protect membrane.
⇒ Auto start when pure water tank have no water.
⇒ Low pressure protection switch to protect high pressure pump when there is no raw water.
⇒ High efficient and low noise high pressure pump.
⇒ Product water conductivity meter to monitor product water quality all the time.
⇒ Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.
⇒ Inlet water solenoid valve to stop water when machine is stop.

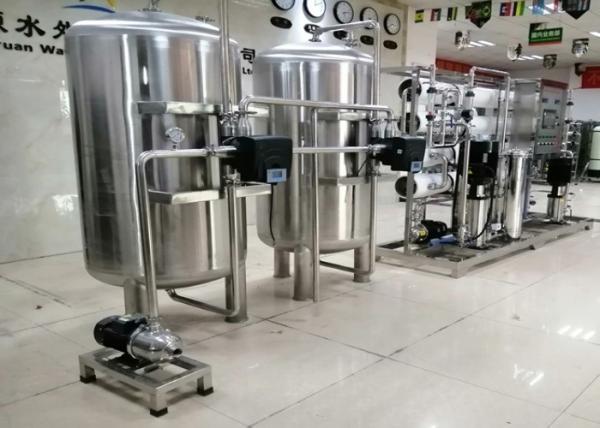

RO Water Treatment System Show
